ELECTRICAL

2 seawater heat-exchanger cooled diesel generators
Kohler 14 kW generator (Yanmar 4 cil diesel has 11500 hrs March 2011, serviced March 2011)
and
Fisher Panda 8 Kw (3 cil Kubota diesel has 1300 hrs March 2011)
these units supply 220V AC power to following :
--- Lewco 40 Amp/24V battery charger
--- Mastervolt Combi 240 VAC/ 24 VDC/4kW real
sine wave inventor / 120 Amps charger
--- Vantage marine 15 gal/hr water maker.
--- Electric Ceramic cooking plate in galley.
--- Xantrex 30 Amp/12Volts battery charger, 2009.
--- Holding plate deep freezer 500 liters
--- Washing machine in bathroom

An second electrical panel (220V/50 Hz) is powered from the 4000 Watt real sine wave Mastervolt DC-to-AC inverter (2009) or gets her power from generator when in service. All control and switch panels have breaker-switches.
This second panel contains: TV, microwave, blender, and all 220V outlets in the ship.

The Xantrex Link 20 (new 2007) monitors the 24 and 12 volt battery banks 24 hrs a day.

There are telephone and shore power inlets and cords. There is a 10kW shorepower-insulation-transformer to avoid electrolysis and to convert 110V to 220 V, or 220V to 220V. This transformer enables the yacht to accept European 220 V as well as USA 110V shore power supply. Monsoon has no 50 versus 60 Hz problems. And for safety ALL high-voltage circuits are protected with earth-leakage breakers. (2005)
We have a 2kW transformer make 110 Volts AC from 220 VAC
A HEHR 100 Amps/24V (2004) alternator/3 step regulator is mounted on the main engine. Monsoon is a so called silent ship: during passage making under sail the generator is needed only during 6 hours per day, we do from 18 hrs to midnight, because we have electric cooking.

Batteries 24 VDC and 12 VDC
Rectangular plate lead/acid commercial deep cycle battery house banks, 1x 740 AmpHr at 24 Volt
2x6=12 voltDC TROJANS NEW in 2011, 220 Amp hour

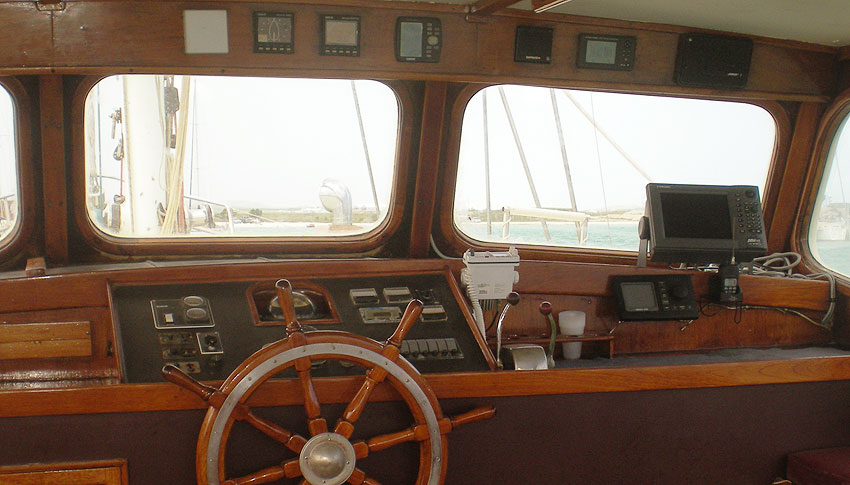

Electronics + Navigation.

Furuno 1834 New in May 2012 , radar / chartplotter
Furuno echo sounder 3KW BBFO all to Navnet.

Standard Horizon 25 Watt VHF radio
Garmin 128 GPS
Furuno gps GP 32 - 2005
Handheld Magellan GPS
VHF radio handheld Icom 88
ICOM 700 SSB radio with antenna tuner
.
Simrad Robertson AP50 (2004) autopilot
Wagner T10 hydraulic ram for steering
Dannforth 6 inch compass

Fish finder try-out with marine biologist Karel Carelse was an unprecedented success
